Towel Roller Machines
cloth roll towel processing equipment
Darman Manufacturing offers several different models of roll towel processing equipment built exclusively for cloth roll toweling. Our varying sizes of towel roller machines offer processing speeds from 50 to 1000 towels per eight-hour day. Each system also has adaptors to fit outlets other than 120 volts.
The E-Z Winder/Unwinder is the most basic piece of processing equipment we produce. It is manually operated and requires no electricity. The E-Z Winder/Unwinder is a perfect fit for processing only a small amount of toweling.
Mechanical and Operational Features:
Compact size
No electricity required
Manually operated
Can wind and unwind toweling
![E-Z Winder [NoBkgrnd-White]_v3.jpg](https://images.squarespace-cdn.com/content/v1/556724a0e4b0912f09d94124/1530889431489-0VCZC0BMVIL5VCUWYSVM/E-Z+Winder+%5BNoBkgrnd-White%5D_v3.jpg)
The Mini Combo is our compact cloth roll towel winder/unwinder machine with a manually operated swing arm.
Average Number of Towels Rolled per 8 Hour Day: 50
Mechanical and Operational Features:
Compact size
Easy to operate
Energy efficient
Runs on a 12-volt adapter power supply that plugs into any 120 volt outlet.
2 minutes to unwind (flake) cloth rolled towels including loading and stacking.
1-1/2 minute to rewind cloth rolled towel including loading and stacking
The Basic Combo is an "entry level" combination winder and unwinder built expressly for the small-volume laundry.
The Basic Combo has a winding capability similar to the Auto Combo, but unwinding requires manual operation to flake (flat fold) out the towel with a manually operated swing arm.
The Basic Combo has separate drive rollers for the clean and soiled towel.
Average Number of Towels Rolled per 8 Hour Day: 100
Mechanical and Operational Features:
Motor options; 110/220v, 50 or 60 cycle.
Totally enclosed heavy duty fan cooled motor.
Sealed precision bearings
Towel fold length (flake) can be varied

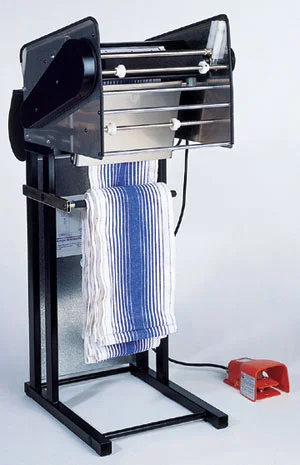

The Auto Combo is a more sophisticated towel roller machine. In contrast to the Basic Combo, the unwinding of the towel is automatic. This machine is normally purchased by a small-volume laundry or by a medium- or large-volume laundry as a backup to other processing equipment.
There are separate drive rollers for the clean and soiled towels.
Average Number of Towels Rolled per 8 Hour Day: 200
Mechanical and Operational Features:
Motor options; 110/220v, 50 or 60 cycle.
Totally enclosed heavy duty fan cooled motor.
Sealed precision bearings
Solid state motor controls
Heavy-gauge divider between rollers for hygienic purposes
Towel fold length (flake) can be varied
Latching foot switch
Chute drive slips if mechanism is obstructed.
The Darman Towel Winder is used for winding only. It is usually purchased by a medium- to large- volume laundry.
The winder has a built-in beater bar, which helps straighten the washed toweling, ensuring that it will roll up smooth and straight.
By changing the length of the drive belt, the processing time to roll a towel can be varied from 40 seconds to 21 seconds.
The motor runs only when you step on the foot pedal and then the drive roller and beater bar are engaged.
Average Number of Towels Rolled per 8 Hour Day: 500
Mechanical and Operational Features:
Motor options; 110/220v, 50 or 60 cycle
Totally enclosed heavy duty fan cooled motor
Built in beater bar
Enclosed belt drive
Quality construction; 3/16" aluminum, 18 ga. steel
Releasing foot pedal interrupts the drive to all moving parts.
Designed for full operator safety and easy maintenance.
The Single Lane Unwinder is used only for unwinding and flaking the soiled towel as it comes in to be washed. It is normally purchased by a medium- to large-volume laundry.
The unwinder is easily loaded and unloaded by only one operator, and automatically unwinds the towel once it is loaded. The flake (flat fold) length of the towel can be adjusted, and an electric towel sensor automatically turns off the machine if the towel wraps around the drive roller.
Average Number of Towels Rolled per 8 Hour Day: 500
Mechanical and Operational Features:
Motor options; 110/220v, 50 or 60 cycle.
Totally enclosed heavy duty fan cooled motor.
Quality construction; 3/16" aluminum, 18 ga. steel.
Long wearing drive roller.
Variable speed can easily be obtained by changing length of drive belt.
Belt drive tension is self-adjusting
Belt drive is enclosed for total operator safety
Kill switch easily accessible.
Easy loading and unloading (the towel pick-up arm swings away from machine for easy removal of the towel, then swings back into position).
Variable flake length, easy maintenance.
The Double Lane Unwinder is a high-volume towel roller machine that’s normally purchased by a large-volume laundry.
The Double Lane Unwinder is similar to our Single Lane Unwinder, but it has the capacity to unwind two rolls at the same time. One operator can easily operate this machine and therefore double production.
Average Number of Towels Rolled per 8 Hour Day: 1000
Mechanical and Operational Features:
Motor options; 110/220v, 50 or 60 cycle.
Totally enclosed heavy duty fan cooled motor.
Quality construction; 3/16" aluminum, 18 ga. steel.
Long wearing drive roller.
Variable speed can easily be obtained by changing length of drive belt.
Belt drive tension is self-adjusting
Belt drive is enclosed for total operator safety
Kill switch easily accessible.
Easy loading and unloading (the towel pick-up arm swings away from machine for easy removal of the towel, then swings back into position).
Variable flake length, easy maintenance.
